Belzona 1121 (Super XL-Metal)

An epoxy-based repair composite with extended working life for metal repair.

Belzona 1121 (Super XL-Metal)

A 2-part repair composite for metal repair and resurfacing based on 100% solids epoxy resin reinforced with silicon steel alloy. This repair material has been developed to offer an extended working life, ideal for large applications where greater volumes of material are required or to provide adequate working time at higher temperatures. Belzona 1121 (Super XL-Metal) will not corrode and resists a wide range of chemicals. It is easy to mix and apply without the need of specialist tools and can be machined using conventional tools.

Key benefits:

  • Multi-purpose durable repair composite with extended working life
  • Fully machinable using conventional tools
  • Application and cure at room temperature - no hot work involved
  • Simple mixing ratio
  • Reduced health and safety risks as it is 100% solids
  • No shrinkage, expansion or distortion
  • Excellent adhesion to metals including stainless steel, carbon steel, aluminium, brass and copper
  • Will adhere to many other natural and synthetic materials including glass and wood
  • Outstanding corrosion resistance
  • Excellent chemical resistance against a wide range of chemicals
  • Excellent electrical insulation characteristics

Applications for Belzona 1121 (Super XL-Metal) include:

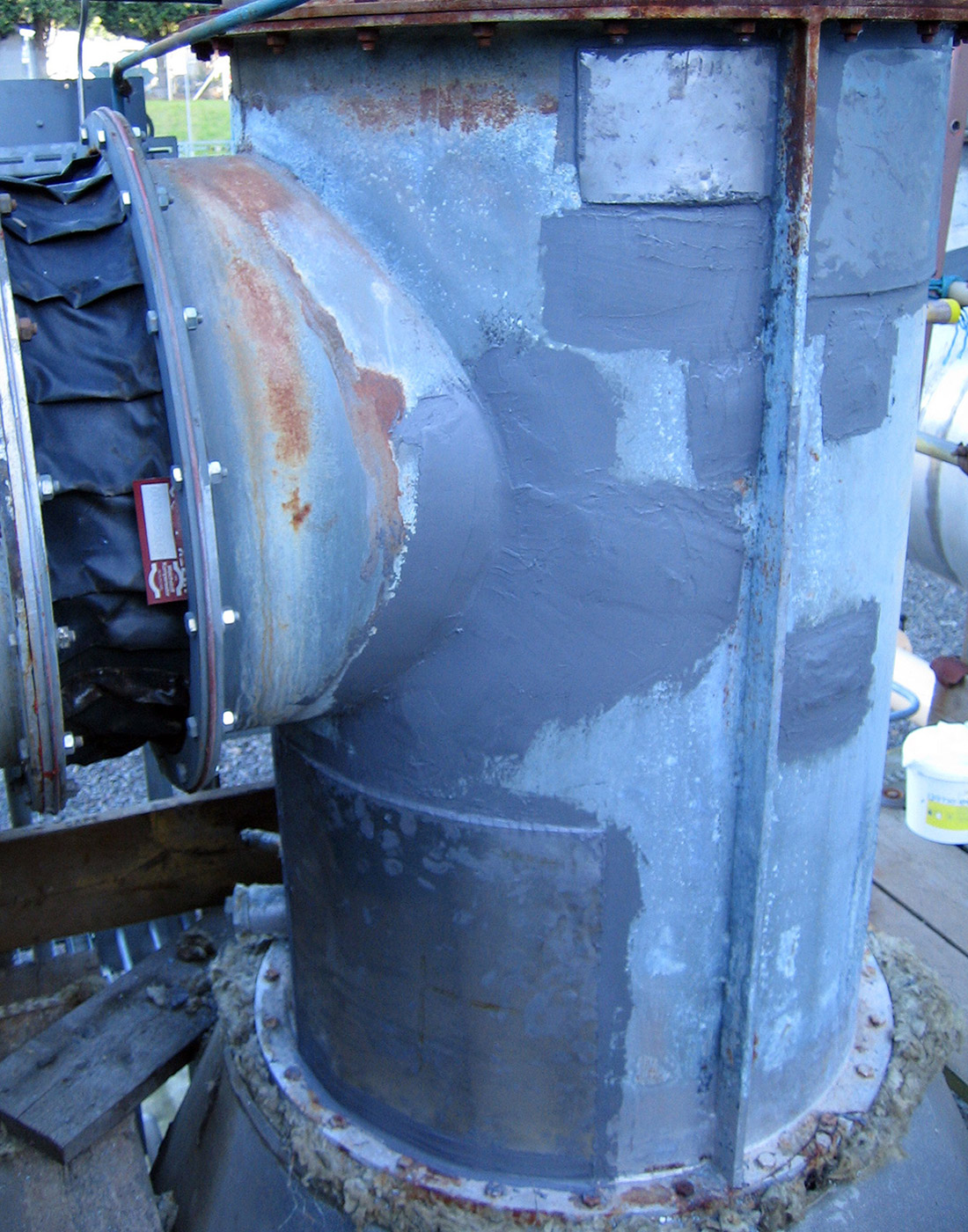

  • Resurface of large pitted metal surfaces

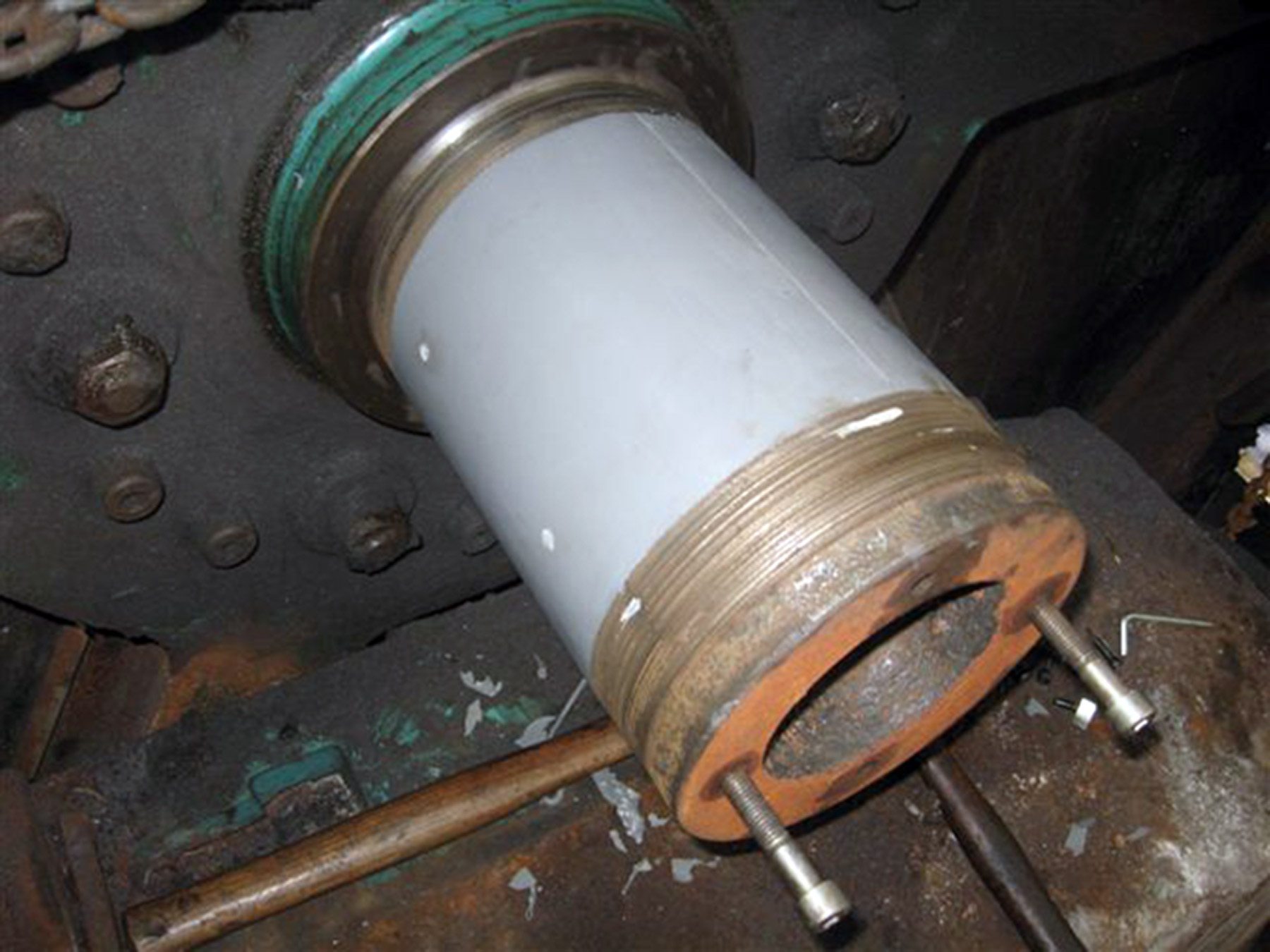

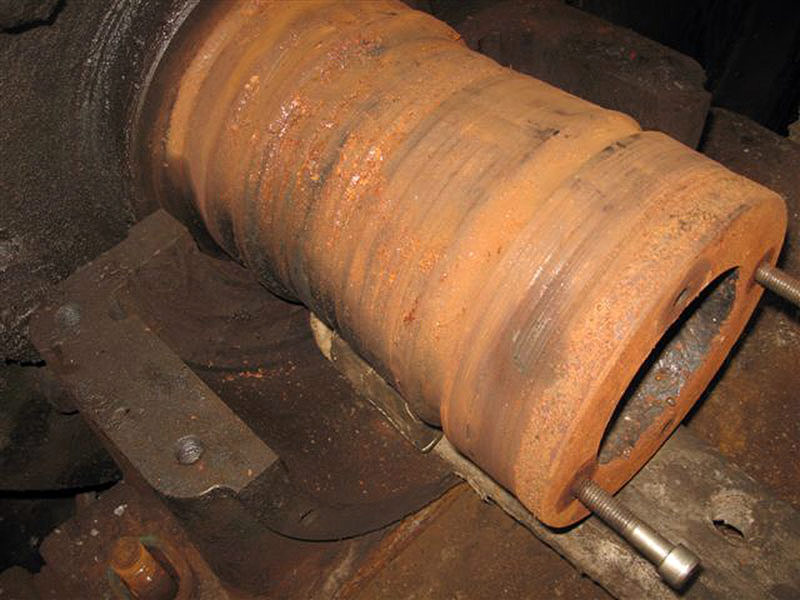

  • Repair of damaged shafts and hydraulic rams
  • In-situ flange repair
  • High strength structural adhesive for metal bonding
  • Creation of irregular load bearing shims and reforming of bearing housings

* All products are subject to regional restrictions. Check with your local Distributor for more information


Approvals:

ABS Approval

ABS

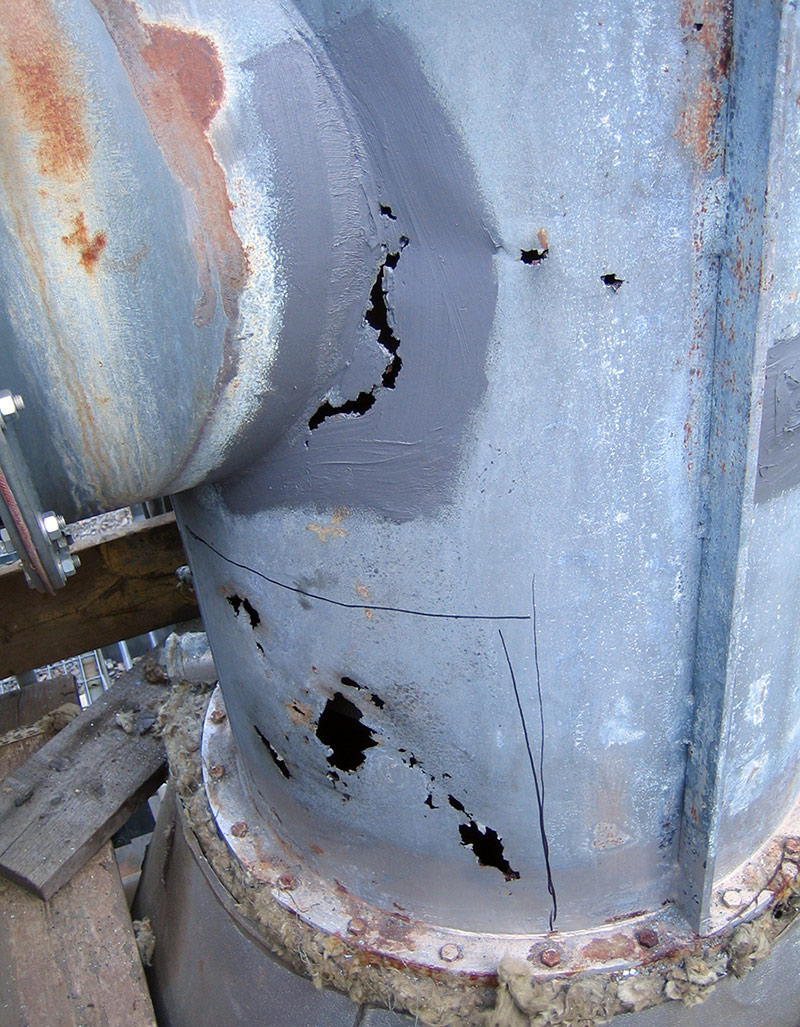

How do you use Belzona 1121 to fill holes in metal without welding?

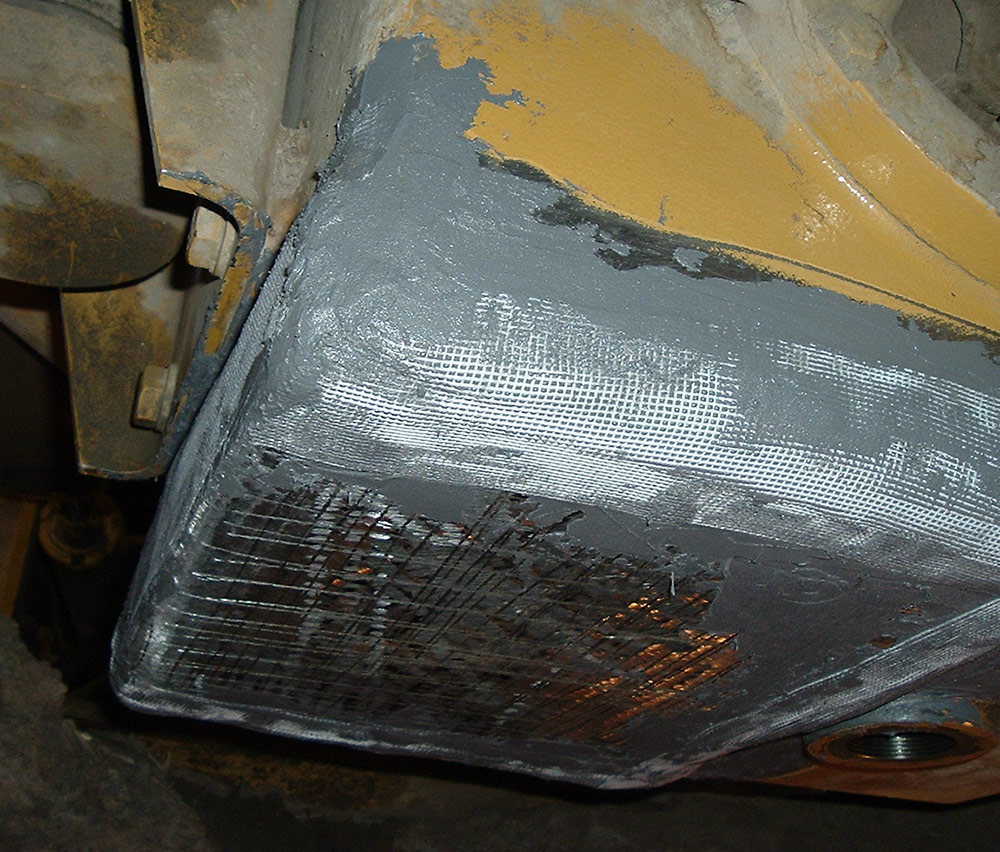

Belzona 1121 is a 2-part epoxy composite for metal repair and resurfacing. The paste is applied directly onto the application site with a plastic applicator or spatula. Press down the product firmly to fill all cracks, remove entrapped air, and ensure maximum contact with the surface. Belzona 1121 can be contoured to the correct profile with a plastic applicator or allowed to cure and then machined down to create a smooth profile. In addition, Belzona 9341 (Reinforcement tape) can be stippled over cracks, gaps, and holes, allowing it to fill holes in metal without welding.

What is the cure time of 2-part epoxy, Belzona 1121?

The cure time for 2-part paste-grade epoxy system, Belzona 1121 varies depending on the ambient conditions and will be reduced for thicker sections and extended for thinner sections. Please see the product's Instructions for Use for more information.

Where can you buy epoxy repair composite, Belzona 1121?

Epoxy repair composite, Belzona 1121, can be bought from a local authorized Belzona distributor.

More information:

For more information about Belzona 1121 (Super XL-Metal) contact us or find your local distributor.

You can apply to join Belzona Connect to access additional information including SDS and instructions for use.
